LeCroy Wavepro 7Zi-A示波器

美国力科 LeCroy Wavepro 7Zi-A示波器从1.5GHz到6GHz，在保证信号保真度的同时，极大提升了各个方面的处理速度,每个通道同时具备50Ω和1MΩ输入,输入通道配有高速前端放大器和模数转换器。X-Stream II 流线式处理结构使长存储下的处理速度优于其他类型示波器10-20倍。力科 LeCroy Wavepro 7Zi-A示波器具备灵活而有深度的分析工具箱，将会在调试，验证，分析和一致性性测试方面给测试者留下难忘的经历。
探测限制自由
力科 LeCroy Wavepro 7Zi-A示波器擅长提供的通用工具，在其他厂家的1.5GHz到6GHz示波器上难见踪影。WavePro7Zi系列示波器包含可选的50Ω和1MΩ输入功能。 4GHz和6 GHz型号包括ProBus和Prolink输入接口，这意味着可连接8个探头，然后通过仪器面板或遥控的方式从这8个探头中选择。这样即使使用4GHz到6GHz型号也能很容易连接一个无源探头，并很容易找到一个1MΩ输入适配器。另外，任何已经购买的力科探头，如电流探头，单端或差分有源探头，高压探头，都可继续在WavePro7Zi上使用。
力科 LeCroy Wavepro 7Zi-A示波器提供更多的触发方式来高效定位问题
高带宽边沿触发，以及10个不同的SMART 触发，帮助你迅速定位问题。大多数SMART触发可以触发低至200ps的脉冲。高速串行触发可触发高达2.7 Gb / s的多达80位长度的串行序列，包括了内置的硬件时钟恢复模块。
力科 LeCroy Wavepro 7Zi-A示波器采用高速硬件触发与余辉显示来捕获感兴趣的信号，并提供比其它方法快100倍的方案。传统的快速显示更新的方式只适合捕获低速边沿上发生的频繁事件，而TriggerScan则善于发现快速边沿速率上的偶发事件。
力科 LeCroy Wavepro 7Zi-A示波器WaveScan高级搜索和分析功能可以发现一般触发不能定位的问题
即使是最优秀的触发技术也不能找到所有偶发事件，而工程师往往需要这一个功能。WaveScan 可以定位一次捕获中的异常事件（即捕获和搜索）或在长时间、多次采集的数据中扫描一个事件。可以选择20多种搜索模式（频率、上升时间、占空比等），应用搜索条件，开始搜索。在找到事件时，WaveScan会在屏幕上高亮显示错误，并以列表方式显示这些错误。
力科LeCroy WavePro 715Zi-A    (1.5 GHz Bandwidth, 4 Input Channels, 20 GS/s on 2 Ch Max Sample Rate)
力科LeCroy WavePro 725Zi-A    (2.5 GHz Bandwidth, 4 Input Channels, 40 GS/s on 2 Ch Max Sample Rate)
力科LeCroy WavePro 735Zi-A   (3.5 GHz Bandwidth, 4 Input Channels, 40 GS/s on 2 Ch Max Sample Rate)
力科LeCroy WavePro 740Zi-A   (4 GHz Bandwidth, 4 Input Channels, 40 GS/s on 2 Ch Max Sample Rate)
力科LeCroy WavePro 760Zi-A   (6 GHz Bandwidth, 4 Input Channels, 40 GS/s on 2 Ch Max Sample Rate)

力科 LeCroy Wavepro 7Zi-A示波器可选配的混合信号测试方案(4+36)
使用MSO逻辑分析选件可以使示波器具备混合信号测试功能。该组件通过力科的LBUS与示波器连接，以方便快捷的方式提供多达36条数字通道，这些数字波形和模拟波形在时间上同步。MSO选件不需要浪费时间来学习如何连接、同步或操作，MSO已经完全集成了这些操作。除捕获数字信号，他们还能监测低速串行数据信号，如时钟，数据和片选信号，从而把模拟通道节省下来用于高速信号测试。
力科 LeCroy Wavepro 7Zi-A示波器采集内存的领导者
力科能够做到长时间采集的数据无缝存入采集存储器，易于使用。7Zi系列示波器专有的X - Stream II流线式结构支持捕捉，放大，测量和分析多个多达256 Mpts存储深度的波形，你将体验到比现今示波器快10到20倍的性能。无论是查看捕获到的信号或是对多个波形进行统计分析、跟踪频率或者识别复杂数据序列，WavePro7Zi都能胜任。
力科 LeCroy Wavepro 7Zi-A示波器瞬时响应能力
在第一次使用Zi 示波器时，您会体会到前所未有的响应能力。采集最长记录长度的波形并做最复杂的波形分析，均可很容易地在同一时间内进行，您可使用前面板或鼠标、触摸屏来操作示波器。
力科 LeCroy Wavepro 7Zi-A示波器X-Stream II Architecture架构优化的快速吞吐量
X -Sream II技术设计是为长存储器操作和响应能力设计的，即使当示波器正在执行多个100 Mpts的波形时也能实现高数据吞吐量。它不需要在长存储和快速处理之间进行权衡。 WavePro7Zi专有的X-Stream架构在英特尔?Core?2四核处理器（12 GHz的有效时钟速率），高速串行数据总线，Windows7 64位操作系统和8GB内存的支撑下，性能更强大。
力科 LeCroy Wavepro 7Zi-A示波器通过将波形分段成多个可变长度，大大提高了CPU缓存的效率。WavePro 7Zi对长存储数据进行快速处理，其它示波器快-10- 20倍。
力科 LeCroy Wavepro 7Zi-A示波器通过动态分配缓存以实现存储器利用效率最大化，WavePro7Zi系列实现了快速的前面板响应能力。波形预览在显示临时计算结果的时候，如果停止当前处理过程，内置的进程将快速改变当前设置，无需冗长计算就能快速重新定位和缩放新的波形。
力科 LeCroy Wavepro 7Zi-A示波器数字滤波器软件包（WPZi- DFP2）让您实现有限或无限冲激响应滤波器，以消除不需要的频谱成分，如噪音，或者观察重要的频率分量。您可以选择标准的FIR 或IIR滤波器，也可以自己设计过滤器参数。
力科 LeCroy Wavepro 7Zi-A示波器频谱分析软件包（WPZi-SPECTRUM）可以使示波器像频谱分析仪那样操作，调整频率范围，分辨率和中心频率。并能对信号进行滤波以实时查看频率特性的变化。另外一个独特的功能是把频率峰值点的频率值和功率以表格形式列出来，点击表格中的内容即可显示对应的峰值。
力科 LeCroy Wavepro 7Zi-A示波器Mixed Signal Oscilloscope Option (MS-250/MS-500)混合信号选项可以把WavePro 7Zi 转换成拥有最多36条数字通道的混合信号示波器，这些通道的采样率可以高达2GS/s,每条通道达到50Mpts.拥有最多36个数字输入及时间同步的4条模拟通道，扩大了示波器的用途，提供了完整的系统视图。
力科 LeCroy Wavepro 7Zi-A示波器专用定时参数可以测量各种信号上的周期抖动、周期间抖动、半周期抖动、宽度抖动。通过抖动的三种视图（统计、时间和频率），可以帮助了解根本原因、调试问题。直方图功能可用于了解统计分布。追踪功能可以显示时间相关的抖动峰值，并能和其它信号相比较。FFT功能可以帮助发现电路中高频抖动的根本原因。
力科 LeCroy Wavepro 7Zi-A示波器主要规格
带宽 1.5 - 6 GHz
起步价 $24,990
标准记录长度  20 Mpts/ch
最大记录长度 256 Mpts/ch
最高采样率 40 GS/s
力科 LeCroy Wavepro 7Zi-A示波器选项：
WPZi-A-S-32
32 Mpt/Ch (64 Mpt/Ch Interleaved) Memory Option for WavePro Zi-A.
WPZi-A-M-64
64 Mpt/Ch (128 Mpt/Ch Interleaved) Memory Option for WavePro Zi-A.
WPZi-A-L-128
128 Mpt/Ch (256 Mpt/Ch Interleaved) Memory Option for WavePro Zi-A.
Sampling Rate Options
WPZi-1.5GHz-4X20GS
20 GS/s (40 GS/s Interleaved) Sampling Rate Option for 1.5 GHz WavePro Zi
High Speed Output Accessories
LSIB-1
High speed PCIe Gen1 x4 digitizer output for LeCroy oscilloscope. Half-height card with custom connector
LSIB-HOSTBOARD
PCI Express x4 Host Interface Board for desktop PC
LSIB-HOSTCARD
PCI Express x1 Express Card Host Interface for laptop Express Card slot
LSIB-CABLE-3M
PCI Express x 4 3-meter cable with x4 cable connectors included
LSIB-CABLE-7M
PCI Express x 4 7-meter cable with x4 cable connectors include
Serial Data Analysis
WPZi-CBL-DE-EMBED
Remove cable effects from your measurements
WPZi-SDAII
SDA II Serial Data Analysis Option
WPZi-EYEDRII
Eye Doctor II Advanced Signal Integrity Tools for WavePro 7 Zi Oscilloscopes, SDA 7 Zi Serial Data Analyzers, and DDA 7 Zi Disk Drive Analyzers
Serial Data Compliance
QPHY-MIPI-DPHY
QualiPHY Enabled MIPI D-PHY Software Option
QPHY-DDR2
QualiPHY DDR2 Compliance Software Option
QPHY-DDR3
QualiPHY Enabled DDR3 Software Option
QPHY-ENET
QualiPHY Ethernet Application Software
QPHY-HDMI
QualiPHY Enabled HDMI Software Option (TF-HDMI-3.3V-QUADPAK required;WavePro 760Zi requires SDA II option)
QPHY-LPDDR2
QualiPHY LPDDR2 Compliance SW
QPHY-PCIe
QualiPHY Enabled PCIe Software Option (for Gen1 and Gen2 testing)
QPHY-SATA-TSG-RSG
QualiPHY Enabled SATA Software Option
QPHY-USB
USB Application Software Package
QPHY-UWB
WiMedia UWB Transmitter Measurement Software Option
ENET-2ADA-BNCSMA
2 x BNC to SMA Adapter
ENET-2CAB-SMA018
2 x 18 inch SMA to SMA Cable
ENET-2CAB-SMA036
2 x 36 inch SMA to SMA Cable
WPZi-SDM
Serial Data Mask Software Package for WavePro Zi Series
Computer Upgrade
WPZi-2-UPG-8GBRAM
Upgrade from 2 GB to 8 GB CPU RAM
WPZi-4-UPG-8GBRAM
Upgrade from 4 GB to 8 GB CPU RAM
GPIB-2
GPIB Option for LeCroy oscilloscope. Half-height card with custom connector.
WPZi-500GB-HD
Upgrade from standard size hard drive to 500 GB hard drive
WPZi-160GB-RHD-02
Additional 160 GB Hard Drive for WPZi. Includes Windows Vista OS, LeCroy oscilloscope software and critical scope operational file duplicates.
WPZi-500GB-RHD-02
Additional 500 GB Hard Drive for WPZi. Includes Windows Vista OS, LeCroy oscilloscope software and critical scope operational file duplicates.
Serial Trigger and Decode
WPZi-FCbus D
FibreChannel decode annotation option for WavePro 7Zi series
WPZi-SASbus D
SAS Decode annotation option for WavePro 7Zi series
WPZi-SATAbus D
SATA Decode annotation option for WavePro 7Zi Series Supports SATA Gen 1, 2, and 3
WPZi-1553 TD
MIL-STD-1553 Trigger and decode option for WavePro Zi
WPZi-8B10B D
8b10b Decode Option for WavePro Zi Series Oscilloscopes
WPZi-ARINC429bus DSymbolic
ARINC 429 Bus Symbolic Decode option for WavePro Zi
WPZi-AudioBus TD
AudioBus Trigger and decode Option for WavePro 7Zi
WPZi-AudioBus TDG
AudioBus Trigger, decode, and Graph Option for WavePro 7Zi
WPZi-CANbus TD
CAN Bus Trigger & Decode Option for WavePro Zi Series Oscilloscopes
WPZi-CANbus TDM
CAN Bus Trigger, Decode, and Measure Option for WavePro Zi Series Oscilloscopes
WPZi-DigRF3Gbus D
DigRF 3G Bus Decode option for WavePro Zi
WPZi-DPHYbus D
D-PHY Bus Decode option for WavePro Zi
WPZi-FlexrayBus TD
FlexRay Bus Trigger & Decode Option for WavePro Zi Series Oscilloscopes
WPZi-FlexRayBus TDP
FlexRay Bus Trigger, Decode, and Physical Layer Test Option for WavePro Zi Series Oscilloscopes
WPZi-HSPT
50 Mb/s to 3.125 Gb/s High Speed Serial Trigger Option for 4-6 GHz Oscilloscopes & Disk Drive Analyzers
WPZi-I2Cbus TD
I2C Bus Trigger & Decode Option for WavePro Zi Series Oscilloscopes
WPZi-LINbus TD
LIN Bus Trigger & Decode Option for WavePro Zi Series Oscilloscopes
WPZi-MSPT
50 Mb/s to 1.25 Gb/s Medium Speed Serial Trigger Option for 2.5-3.5 GHz Oscilloscopes & Disk Drive Analyzers
WPZi-PCIEbus D
PCI Express (Gen 1.x, 2.0, and 3.0) Protocol Link Layer Decode Annotation for WavePro 7 Zi Series Oscilloscopes and Analyzers
WPZi-PROTObus MAG
Serial Debug Toolkit - Measure Analyze Graph for WavePro Zi
WPZi-ProtoSync
Decode Annotation and Protocol Analyzer Software Synchronization Option for WavePro 7Zi/Zi-A
WPZi-ProtoSync-BT
Decode Annotation and Protocol Analyzer + Bit Tracer Software Synchronization Option for WavePro Zi/Zi-A
WPZi-SPIbus TD
SPI Bus Trigger & Decode Option for WavePro Zi Series Oscilloscopes
WPZi-UART-RS232bus TD
UART and RS232 Bus Trigger & Decode Option for WavePro Zi Series Oscilloscopes
WPZi-USB2bus D
USB 2.0 Bus Decode option for WavePro Zi
WPZi-USB3bus D
USB 3.0 Decode option for WavePro Zi
Jitter Analysis Software
WPZi-JITKIT
Clock, clock-data Jitter Analysis and views of time, statistical, spectral, and jitter overlay
Synchronize Oscilloscope Options
Zi-8CH-SYNCH
HW Kit to allow combination of channels from two 8Zi oscilloscopes
Miscellaneous
KYBD-1
Keyboard
WPZi-HARDCASE
Hard carrying case for all WavePro Zi Series oscilloscopes
WPZi-SOFTCASE
Soft carrying case for all WavePro Zi Series oscilloscopes
RACKMOUNT-1
Rack-mount accessory for converting a WavePro Zi series oscilloscope to an 8U rack-mounted package
ZI-EXTDISP-15
Top-mounted, Fully Integrated 15.3" WXGA with Touch Screen Display, Including all Cabling and Software
TTL-AUX-OUT
Accessory for Zi oscilloscopes to enable TTL level output from the Aux Out connector

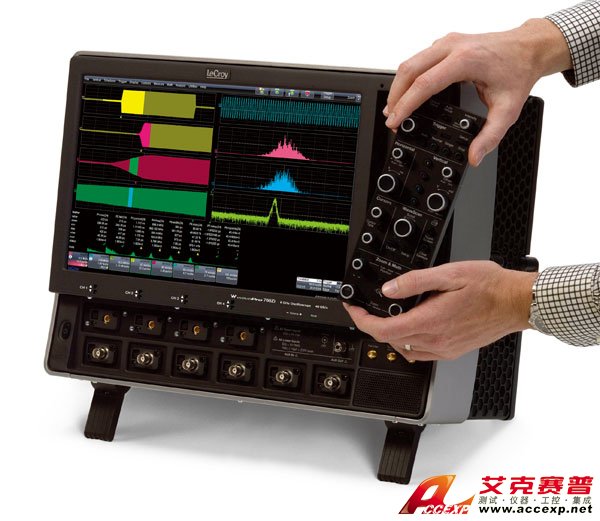

Zi-FrontPanel
Removable front panel for WavePro 7Zi and WaveMaster 8Zi Oscilloscopes
Zi-FrontPanel-4Ch
Removable front panel with 4 independent channel controls for WavePro 7Zi and WaveMaster 8Zi Oscilloscopes
Rise-Time-Filter-100ps
Low-Pass Rise Time Filter 100 ps
Rise-Time-Filter-150ps
Low-Pass Rise Time Filter 150 ps
20dB-SMA-Attenuator
20 dB Attenuator
Other Software Options
WPZi-SPECTRUM
Spectrum Analyzer and Advanced FFT Option for WavePro Zi Series
WPZi-EMC
EMC Pulse Parameter Software Package for WavePro Zi Series
WPZi-ET-PMT
Electrical Telecom Pulse Mask Test Package for WavePro Zi Series
Data Storage Software
WPZi-AORM
Advanced Optical Recording Measurement Package for WavePro Zi Series
WPZi-DDM2
Disk Drive Measurements Software Package for WavePro Zi Series
Power Analysis Software
WPZi-PMA2
Power Measure Analysis Software Package
Digital Filtering Software
WPZi-DFP2
Digital Filter Software Package for WavePro Zi Series
Mixed Signal Solutions
MS-500
500 MHz Maximum Input Frequency, 18 Channels, 50 Mpts/ch Mixed Signal Oscilloscope Option
MS-500-36
250 MHz Maximum Input Frequency, 36 Channels, 25 Mpts/ch Mixed Signal Oscilloscope Option
MS-250
250 MHz Maximum Input Frequency, 18 Channels, 10 Mpts/ch Mixed Signal Oscilloscope Option
Mixed Signal Accessories
PK400-1
Large gripper probe set for 0.10'' (2.54 mm) pin pitch, includes 10 probes with color-coded leads
PK400-2
Medium gripper probe set for 0.04'' (1.0 mm) pin pitch, includes 10 probes with color-coded leads
PK400-3
Small gripper probe set for 0.008'' (0.2 mm) pin pitch, includes 10 probes with color-coded leads
MSO-MICTOR
Mictor Cable, D0-D35
MSO-3M
3M Interconnect Cable, D0-D17 or D18-D35
Serial Data Test Fixtures
TF-DSQ
Probe Deskew and Calibration Fixture
TF-ENET-B
10/100/1000Base-T Compliance Test Fixture
TF-ET
Telecom Adaptor Kit 100Ω, 120Ω, 75Ω
TF-HDMI-3.3V-QUADPAK
HDMI Pull-Up Terminator Quad Pack – for Use with the Efficere ET-HDMI-TPS-S Test Fixture
TF-SATA-C
SATA Compliance Test Fixture (*WavePro 7 Zi and WaveMaster 8 Zi class oscilloscopes require the SDA II software option; **20M memory required)
TF-SATA-C-Kit
SATA Compliance Test Kit (*WavePro 7 Zi and WaveMaster 8 Zi class oscilloscopes require the SDA II software option; **20M memory required)
TF-USB-B
USB 2.0 Testing Compliance Test Fixture
美国力科 LeCroy Wavepro 7Zi-A示波器可选探头：
ZS1500-QUADPAK
Set of 4 ZS1500 Active Probes
ZS1000-QUADPAK
Set of 4 ZS1000 Active Probes
ZS1500
1.5 GHz, 1 MΩ, 0.9 pF Active Probe
ZS1000
1 GHz, 1 MΩ, 0.9 pF Active Probe
HFP2500
2.5 GHz Active Voltage Probe
Current Probes
CP030
30 Amps, 50 MHz BW Current Probe - AC/DC , 50 Amp Peak Pulse
CP031
30 Amps, 100 MHz BW Current Probe - AC/DC , 50 Amp Peak Pulse
AP015
30 Amps, 50MHz BW Current Probe - AC/DC, 50 Amp Peak Pulse
CP150
150 Amps, 10 MHz BW Current Probe - AC/DC , 500 Amp Peak Pulse
CP500
500 Amps, 2 MHz BW Current Probe - AC/DC , 700 Amp Peak
DCS015
Deskew Calibration Source for AP015
Differential Amplifiers
DA1855A
DA1855A, 100 MHz Differential Amplifier with fast over drive recovery, calibrated offset, and selectable LP filters
DXC100A
DXC100A, Selectable ÷100 or ÷10 , Passive Differential Probe Pair for DA18xxA series
DXC200
÷1,50 MHz low capacitance Passive Differential Probe Pair for DA18xxA series
DXC-5100
÷100 2.5KV Passive High Voltage Probe Pair for DA18xxA series. Requires DA101 for full performance
DA101
÷10 1MOhm Passive Attenuator for DXC series probes
DA1855A-PR2
2 Ch, 100 MHz Differential Amplifier with fast over drive recovery, calibrated offset, and selectable LP filters
DA1855A-PR2-RM
Rack mountable version of the DA1855A-PR2
DA1855A-RM
DA1855A with rackmount
Differential Probes
WL-PLink
WaveLink ProLink probe body >3.5 GHz
WL-Pbus
WaveLink ProBus probe body = 3.5 GHz
D600A-AT
WaveLink 7.5 GHz Differential Probe with Adjustable Tip Module
D300A-AT
WaveLink 4 GHz Differential Probe with Adjustable Tip Module
D620
WaveLink 6 GHz Differential probe module 5V
D610
WaveLink 6 GHz Differential probe module 2.5V
D420
WaveLink D320 3.5 GHz/5Vp-p and +/-3V Offset Range Differential Amplifier Small tip Module
D410
WaveLink D410 4 GHz/2.5Vp-p and +/-3V Offset Range Differential Amplifier Small tip Module
D320
WaveLink 3.5 GHz Differential probe module 5V
D310
WaveLink 3.5 GHz Differential probe module 2.5V
D620-PT
WaveLink D620 6 GHz/5Vp-p and +/-3V Offset Range Differential Amplifier Small Tip Module with Dx20-PT Adjustable Positioner Tip. 4.8 mVrms (typical) probe + scope noise. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
D610-PT
WaveLink D610 6 GHz/2.5Vp-p and +/-3V Offset Range Differential Amplifier Small Tip Module with Dx10-PT Adjustable Positioner Tip. 2.8 mVrms (typical) probe + scope noise. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
D500PT
WaveLink 6 GHz Differential Positioner Mounted Tip Module
D420-PT
WaveLink D420 4 GHz/5Vp-p & +/-3V Offset Range Differential Amplifier Small Tip Module w/Dx20-PT
D410-PT
WaveLink D410 4 GHz/2.5Vp-p & +/-3V Offset Range Differential Amplifier Small Tip Module w/Dx10-PT
D320-PT
WaveLink D320 3.5 GHz/5Vp-p and +/-3V Offset Range Differential Amplifier Small Tip Module with Dx20-PT Adjustable Positioner Tip. 4.8 mVrms (typical) probe + scope noise. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
D310-PT
WaveLink D310 3.5 GHz/2.5Vp-p and +/-3V Offset Range Differential Amplifier Small Tip Module with Dx10-PT Adjustable Positioner Tip. 2.8 mVrms (typical) probe + scope noise. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
D600ST
WaveLink 7 GHz Differential Probe with Small Tip Module (includes D6000ST-SI, D600ST-QC, D600ST-SP)
D350ST
WaveLink 4 GHz, 5 V Differential with Small Tip Module
ZD1500
1.5 GHz, 1.0 pF Active Differential probe
ZD1000
1 GHz, 1.0 pF Active Differential probe
ZD500
500 MHz, 1.0 pF Active Differential probe
Dx20-PT-KIT
WaveLink Dx20-PT Adjustable Positioner Tip Kit. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
Dx10-PT-KIT
WaveLink Dx10-PT Adjustable Positioner Tip Kit. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins(Qty. 4)/Sockets(Qty 2).
AP034
1 GHz Active Differential Probe
AP033
500 MHz Active Differential Probe
High Voltage Probes
PPE1.2KV
10:1/100:1 200/300 MHz 5M Ohm/50M Ohm
PPE2KV
100:1 400 MHz 50M Ohm High Voltage Probe
PPE4KV
100:1 400 MHz 50M Ohm High-Voltage Probe
PPE5KV
100:1 400 MHz 50M Ohm High-Voltage Probe
PPE6KV
1000:1 400 MHz 50M Ohm High-Voltage Probe
PPE20KV
1000:1 100 MHz 100M Ohm High-Voltage Probe
High Voltage Differential Probes
AP031
15 MHz Differential Probe
ADP300
High-Voltage Active Differential Probe
ADP305
High-Voltage Differential Probes From LeCroy
Optical Probes
OE425
Short wavelength O/E Converter (500-870 nm)
OE455
Long wavelength O/E Converter (950-1630 nm)
OE525
Short wavelength O/E Converter (500-870 nm)
OE555
Long wavelength O/E converter
Probe Parts and Kits
PACC-ZD001
Y Lead adapter, qty 1
PACC-ZD002
Solder in lead, qty 2
PACC-ZD003
Long spring ground, qty 2
PACC-ZD004
Tip Saver, qty 2
PACC-ZD005
Swivel tip adapter
PACC-ZD006
Small IC adapter, qty 2
PACC-ZD007
Micro pogo pin tip, qty 6
LPA-SMA-KIT-A
Kit of Pro-Link to SMA Adapter, new style
LPA-SMA-A
Pro-Link to SMA Adapter, new style
Dxx0-Cable-HiTemp
Replacement 30" matched cable set for use with HiTemp Solder tip leadset
Dx20-SP
Replacement Square Pin lead set for D320/D620
Dx20-SI
Replacement Solder tip lead set for D320/D620
Dx20-SI-HiTEMP
Replacement Solder tip leadset for use with D620/D320 and temperature extension cables
Dx20-QC
Replacement Quick Connect lead set for D320/D620
Dx20-PT
Replacement Dx20-PT Tip with Qty. 4 Pogo Pin Tips and Qty. 2 Sockets
Dx20-HiTEMP
WaveLink Temperature extension cables for Dx20. Includes 1 set of matched 30" high temp cables, 1 solder tip leadset.
Dx10-SP
Replacement Square Pin lead set for D310/D610
Dx10-SI
Replacement Solder tip lead set for D310/D610
Dx10-SI-HiTEMP
Replacement Solder tip leadset for use with D610/D310 and temperature extension cables
Dx10-QC
Replacement Quick Connect lead set for D310/D610
Dx10-PT
Replacement Dx10-PT Tip with Qty. 4 Pogo Pin Tips and Qty. 2 Sockets
Transmission Line Probes
PP066
7.5 GHz Low Capacitance ÷10/÷20 probe
