美国力科 LeCroy SDA 8 Zi-A 串行数据分析示波器

名称:示波器

品牌:

型号:

简介:美国力科 LeCroy SDA 8 Zi-A 串行数据分析示波器集合了最高的带宽(45 GHz)和采样率(120 GS/s),具有极高的信号保真性能以及全部4个输入通道上每通道20 GHz的带宽。可以选择4-45GHz全带宽范围内的不同模块...

  • 产品介绍

美国力科 LeCroy SDA 8 Zi-A 串行数据分析示波器集合了最高的带宽(45 GHz)和采样率(120 GS/s),具有极高的信号保真性能以及全部4个输入通道上每通道20 GHz的带宽。可以选择4-45GHz全带宽范围内的不同模块进行升级。SDA 8 Zi-A模块具有WaveMaster 8 Zi-A所有的特性并附加了适合串行数据测试的功能。
美国力科 LeCroy SDA 8 Zi-A 串行数据分析示波器主要规格:
带宽 4 - 45 GHz
起步价 $75,490
标准记录长度 32 Mpts/Ch
最大记录产度 768 Mpts/Ch
最高采样率 120 GS/s

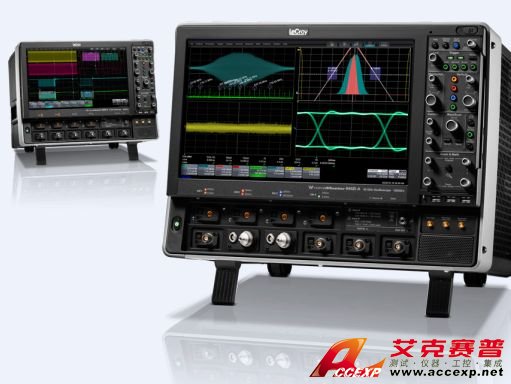

LeCroy SDA 8 Zi-A 串行数据分析示波器
美国力科 LeCroy SDA 8 Zi-A 串行数据分析示波器选项:
SDA8Zi-M-64
64 Mpts/Ch Memory Option for SDA 8 Zi. Includes an additional 4 GB of RAM (8 GB total)
SDA8Zi-L-128
128 Mpts/Ch Memory Option for SDA 8 Zi. Includes an additional 4 GB of RAM (8 GB total)
SDA8Zi-VL-256
256 Mpts/Ch Memory Option for SDA 8 Zi. Includes an additional 4 GB of RAM (8 GB total)
Sampling Rate Options
WM8Zi-2X80GS
80 GS/s on 2 Ch Sampling Rate Option for WaveMaster 8 Zi (not available for 820Zi, 825Zi or 830Zi).Includes two separate external interleaving devices with storage case.
High Speed Output Accessories
LSIB-1
High speed PCIe Gen1 x4 digitizer output for LeCroy oscilloscope. Half-height card with custom connector
LSIB-HOSTBOARD
PCI Express x4 Host Interface Board for desktop PC
LSIB-HOSTCARD
PCI Express x1 Express Card Host Interface for laptop Express Card slot
LSIB-CABLE-3M
PCI Express x 4 3-meter cable with x4 cable connectors included
LSIB-CABLE-7M
PCI Express x 4 7-meter cable with x4 cable connectors include
Serial Data Analysis
WM8Zi-EYEDRII
Eye Doctor II Advanced Signal Integrity Tools
Serial Data Compliance
QPHY-MIPI-DPHY
QualiPHY Enabled MIPI D-PHY Software Option
QPHY-PCIe3
QualiPHY Enabled PCIe 3.0 Software Option
QPHY-DDR2
QualiPHY DDR2 Compliance Software Option
QPHY-DDR3
QualiPHY Enabled DDR3 Software Option
QPHY-DisplayPort
QualiPHY Enabled DisplayPort Software Option
QPHY-ENET
QualiPHY Ethernet Application Software
QPHY-HDMI
QualiPHY Enabled HDMI Software Option (TF-HDMI-3.3V-QUADPAK required;WavePro 760Zi requires SDA II option)
QPHY-LPDDR2
QualiPHY LPDDR2 Compliance SW
QPHY-PCIe
QualiPHY Enabled PCIe Software Option (for Gen1 and Gen2 testing)
QPHY-SAS2
QualiPHY SAS2 Compliance Software
QPHY-SATA-TSG-RSG
QualiPHY Enabled SATA Software Option
QPHY-USB
USB Application Software Package
QPHY-USB3-Tx-Rx
QualiPHY Enabled USB 3.0 Software Option
QPHY-UWB
WiMedia UWB Transmitter Measurement Software Option
ENET-2ADA-BNCSMA
2 x BNC to SMA Adapter
ENET-2CAB-SMA018
2 x 18 inch SMA to SMA Cable
ENET-2CAB-SMA036
2 x 36 inch SMA to SMA Cable
Computer Upgrade
GPIB-2
GPIB Option for LeCroy oscilloscope. Half-height card with custom connector.
WM8Zi-500GB-HD
Upgrade from Standard Size Hard Drive to 500 GB Hard Drive
WM8Zi-160GB-RHD-02
Additional 160 GB Hard Drive. Includes Windows Vista OS, LeCroy Oscilloscope Software and Critical Scope Operational File Duplicates
WM8Zi-500GB-RHD-02
Additional 500 GB Hard Drive. Includes Windows Vista OS, LeCroy Oscilloscope Software and Critical Scope Operational File Duplicates
Serial Trigger and Decode
WM8Zi-FCbus D
FibreChannel decode annotation option for WaveMaster 8Zi series
WM8Zi-SASbus D
SAS Decode annotation option for WaveMaster 8Zi series
WM8Zi-DigRFV4bus D
DigRF V4 Bus Decode option for WaveMaster 8Zi series
WM8Zi-SATAbus D
SATA Decode annotation option for WaveMaster 8Zi series. Supports SATA Gen 1, 2, and 3
WM8Zi-1553 TD
MIL-STD-1553 decode option for WaveMaster 8 Zi
WM8Zi-ARINC429bus DSymbolic
ARINC 429 Bus Symbolic Decode option for WaveMaster 8Zi
WM8Zi-AudioBus TD
AudioBus Trigger and decode Option for WaveMaster 8Zi 7Zi
WM8Zi-AudioBus TDG
AudioBus Trigger, decode, and Graph Option for WaveMaster 7Zi
WM8Zi-CANbus TD
CANbus TD Trigger and Decode Option
WM8Zi-CANbus TDM
CANbus TDM Trigger, Decode and Measure/Graph Option
WM8Zi-EMB
Embedded bundle, Includes I2C TD, SPI TD, UART TD
WM8Zi-DigRF3Gbus D
DigRF 3G Bus Decode option for WaveMaster 8Zi
WM8Zi-DPHYbus D
D-PHY Bus Decode option for WaveMaster 8Zi
WM8Zi-FlexRayBus TD
FlexRay Trigger and Decode Option
WM8Zi-MSO-EMB
Embedded bundle, Includes MS-500-36 with I2C TD, SPI TD, UART TD
WM8Zi-FlexRayBus TDP
FlexRay Bus Trigger, Decode, and Physical Layer Test Option
WM8Zi-I2Cbus TD
I2C Bus Trigger and Decode Option
WM8Zi-LINbus TD
LIN Trigger and Decode Option
WM8Zi-PCIEbus D
PCI Express (Gen 1.x, 2.0, and 3.0) Protocol Link Layer Decode Annotation for WaveMaster 8 Zi Series Oscilloscopes and Analyzers
WM8Zi-PROTObus MAG
Serial Debug Toolkit - Measure Analyze Graph for Wavemaster 8Zi
WM8Zi-ProtoSync
Decode Annotation and Protocol Analyzer Software Synchronization Option for WaveMaster 8Zi/Zi-A
WM8Zi-ProtoSync-BT
Decode Annotation and Protocol Analyzer+Bit Tracer SW Synchronization Option for WaveMaster 8Zi/Zi-A
WM8Zi-SPIbus TD
SPI Bus Trigger and Decode Option
WM8Zi-UART-RS232bus TD
UART and RS-232 Trigger and Decode Option
WM8Zi-USB2bus D
USB 2.0 Bus Decode option for WaveMaster 8Zi
WM8Zi-USB3bus D
USB 3.0 Decode option for WaveMaster 8Zi
Jitter Analysis Software
WM8Zi-JITKIT
Clock, clock-data Jitter Analysis and views of time, statistical, spectral, and jitter overlay
Synchronize Oscilloscope Options
Zi-8CH-SYNCH
HW Kit to allow combination of channels from two 8Zi oscilloscopes
Miscellaneous
OC1024
OC1024 scope cart is sturdy and mobile
OC1021
OC1021 scope cart is sturdy and mobile
KYBD-1
Keyboard
ZI-EXTDISP-15
Top-mounted, Fully Integrated 15.3" WXGA with Touch Screen Display, Including all Cabling and Software
WM8Zi-HARDCASE
Hard Carrying Case
WM8Zi-SOFTCASE
Soft Carrying Case
WM8Zi-RACKMOUNT
Rackmount Accessory for Converting aWM8Zi Series Oscilloscope to an 8U Rack-mounted Package
TTL-AUX-OUT
Accessory for Zi oscilloscopes to enable TTL level output from the Aux Out connector
Zi-FrontPanel
Removable front panel for WavePro 7Zi and WaveMaster 8Zi Oscilloscopes
Zi-FrontPanel-4Ch
Removable front panel with 4 independent channel controls for WavePro 7Zi and WaveMaster 8Zi Oscilloscopes
Rise-Time-Filter-100ps
Low-Pass Rise Time Filter 100 ps
Rise-Time-Filter-150ps
Low-Pass Rise Time Filter 150 ps
20dB-SMA-Attenuator
20 dB Attenuator
Other Software Options
WM8Zi-SPECTRUM
Spectrum Analyzer and Advanced FFT Option
WM8Zi-EMC
EMC Pulse Parameter Software Package
Data Storage Software
WM8Zi-AORM
Advanced Optical Recording Measurement Package
WM8Zi-DDM2
Disk Drive Measurements Software Package (Standard on DDA 8 Zi)
WM8Zi-DDA
Disk Drive Analyzer Software Package
Power Analysis Software
WM8Zi-PMA2
Power Measure Analysis Software Package
Digital Filtering Software
WM8Zi-DFP2
Digital Filter Software Package
Mixed Signal Solutions
MS-500
500 MHz Maximum Input Frequency, 18 Channels, 50 Mpts/ch Mixed Signal Oscilloscope Option
MS-500-36
250 MHz Maximum Input Frequency, 36 Channels, 25 Mpts/ch Mixed Signal Oscilloscope Option
MS-250
250 MHz Maximum Input Frequency, 18 Channels, 10 Mpts/ch Mixed Signal Oscilloscope Option
Mixed Signal Accessories
MSO-MICTOR
Mictor Cable, D0-D35
Serial Data Test Fixtures
TF-DSQ
Probe Deskew and Calibration Fixture
TF-ENET-B
10/100/1000Base-T Compliance Test Fixture
TF-ET
Telecom Adaptor Kit 100Ω, 120Ω, 75Ω
TF-HDMI-3.3V-QUADPAK
HDMI Pull-Up Terminator Quad Pack – for Use with the Efficere ET-HDMI-TPS-S Test Fixture
TF-SATA-C
SATA Compliance Test Fixture (*WavePro 7 Zi and WaveMaster 8 Zi class oscilloscopes require the SDA II software option; **20M memory required)
TF-SATA-C-Kit
SATA Compliance Test Kit (*WavePro 7 Zi and WaveMaster 8 Zi class oscilloscopes require the SDA II software option; **20M memory required)
TF-USB-B
USB 2.0 Testing Compliance Test Fixture
TF-USB3
USB 3.0 Test Fixture Set TF-USB3 ("A" male, "A" female, "B" female)
美国力科 LeCroy SDA 8 Zi-A 串行数据分析示波器可配探头:
ZS1500-QUADPAK
Set of 4 ZS1500 Active Probes
ZS1000-QUADPAK
Set of 4 ZS1000 Active Probes
ZS1500
1.5 GHz, 1 MΩ, 0.9 pF Active Probe
ZS1000
1 GHz, 1 MΩ, 0.9 pF Active Probe
HFP2500
2.5 GHz Active Voltage Probe
Current Probes
CP030
30 Amps, 50 MHz BW Current Probe - AC/DC , 50 Amp Peak Pulse
CP031
30 Amps, 100 MHz BW Current Probe - AC/DC , 50 Amp Peak Pulse
AP015
30 Amps, 50MHz BW Current Probe - AC/DC, 50 Amp Peak Pulse
CP150
150 Amps, 10 MHz BW Current Probe - AC/DC , 500 Amp Peak Pulse
CP500
500 Amps, 2 MHz BW Current Probe - AC/DC , 700 Amp Peak
DCS015
Deskew Calibration Source for AP015
Differential Amplifiers
DA1855A
DA1855A, 100 MHz Differential Amplifier with fast over drive recovery, calibrated offset, and selectable LP filters
DXC100A
DXC100A, Selectable ÷100 or ÷10 , Passive Differential Probe Pair for DA18xxA series
DXC200
÷1,50 MHz low capacitance Passive Differential Probe Pair for DA18xxA series
DXC-5100
÷100 2.5KV Passive High Voltage Probe Pair for DA18xxA series. Requires DA101 for full performance
DA101
÷10 1MOhm Passive Attenuator for DXC series probes
DA1855A-PR2
2 Ch, 100 MHz Differential Amplifier with fast over drive recovery, calibrated offset, and selectable LP filters
DA1855A-PR2-RM
Rack mountable version of the DA1855A-PR2
DA1855A-RM
DA1855A with rackmount
Differential Probes
D2505-PS
25 GHz Complete Probe System with Solder-In Tip (25 GHz) and Positioner Tip Browser (22 GHz)
D2005-PS
20 GHz Complete Probe System with Solder-In Tip (20 GHz) and Positioner Tip Browser (20 GHz)
D1605-PS
16 GHz Complete Probe System with Solder-In Tip (16 GHz) and Positioner Tip Browser (16 GHz)
D1305-PS
13 GHz Complete Probe System with Solder-In Tip (13 GHz) and Positioner Tip Browser (13 GHz)
D2505
WaveLink D2505 25 GHz/1.6Vp-p Differential Probe with Dxx05-SI Solder-In Tip (Qty. 2).
D2005
WaveLink D2005 20 GHz/1.6Vp-p Differential Probe with Dxx05-SI Solder-In Tip (Qty. 2).
D1605
WaveLink D1605 16 GHz/1.6Vp-p Differential Probe with Dxx05-SI Solder-In Tip (Qty. 2).
D1305
WaveLink D1305 13 GHz/1.6Vp-p Differential Probe with Dxx05-SI Solder-In Tip (Qty. 2).
WL-PLink
WaveLink ProLink probe body >3.5 GHz
WL-Pbus
WaveLink ProBus probe body = 3.5 GHz
DA18000AC
18 GHz Type “K” Differential Probe, AC Coupled
D11000PS
11 GHz Differential Probe System
D13000PS
13 GHz Differential Probe System
D600A-AT
WaveLink 7.5 GHz Differential Probe with Adjustable Tip Module
D300A-AT
WaveLink 4 GHz Differential Probe with Adjustable Tip Module
D620
WaveLink 6 GHz Differential probe module 5V
D610
WaveLink 6 GHz Differential probe module 2.5V
D320
WaveLink 3.5 GHz Differential probe module 5V
D310
WaveLink 3.5 GHz Differential probe module 2.5V
D620-PT
WaveLink D620 6 GHz/5Vp-p and +/-3V Offset Range Differential Amplifier Small Tip Module with Dx20-PT Adjustable Positioner Tip. 4.8 mVrms (typical) probe + scope noise. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
D610-PT
WaveLink D610 6 GHz/2.5Vp-p and +/-3V Offset Range Differential Amplifier Small Tip Module with Dx10-PT Adjustable Positioner Tip. 2.8 mVrms (typical) probe + scope noise. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
D500PT
WaveLink 6 GHz Differential Positioner Mounted Tip Module
D320-PT
WaveLink D320 3.5 GHz/5Vp-p and +/-3V Offset Range Differential Amplifier Small Tip Module with Dx20-PT Adjustable Positioner Tip. 4.8 mVrms (typical) probe + scope noise. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
D310-PT
WaveLink D310 3.5 GHz/2.5Vp-p and +/-3V Offset Range Differential Amplifier Small Tip Module with Dx10-PT Adjustable Positioner Tip. 2.8 mVrms (typical) probe + scope noise. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
D600ST
WaveLink 7 GHz Differential Probe with Small Tip Module (includes D6000ST-SI, D600ST-QC, D600ST-SP)
D350ST
WaveLink 4 GHz, 5 V Differential with Small Tip Module
WL-PLink-A
WaveLink ProLink Platform/Cable Assembly Kit for >=13 GHz WaveLink Probes.
WL-2.92MM
WaveLink 2.92mm Platform/Cable Assembly Kit for >=20 GHz WaveLink Probes.
LPA-2.92
ProLink to 2.92mm Adapter with Probe Power and Communication Pass Through
Dxx05-PT-KIT
WaveLink Dxx05-PT (22 GHz rating) Adjustable Positioner Tip Kit. For use with Dxx05 amplifiers.
Dx20-PT-KIT
WaveLink Dx20-PT Adjustable Positioner Tip Kit. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
Dx10-PT-KIT
WaveLink Dx10-PT Adjustable Positioner Tip Kit. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins(Qty. 4)/Sockets(Qty 2).
AP034
1 GHz Active Differential Probe
AP033
500 MHz Active Differential Probe
High Voltage Probes
PPE1.2KV
10:1/100:1 200/300 MHz 5M Ohm/50M Ohm
PPE2KV
100:1 400 MHz 50M Ohm High Voltage Probe
PPE4KV
100:1 400 MHz 50M Ohm High-Voltage Probe
PPE5KV
100:1 400 MHz 50M Ohm High-Voltage Probe
PPE6KV
1000:1 400 MHz 50M Ohm High-Voltage Probe
PPE20KV
1000:1 100 MHz 100M Ohm High-Voltage Probe
High Voltage Differential Probes
AP031
15 MHz Differential Probe
ADP300
High-Voltage Active Differential Probe
ADP305
High-Voltage Differential Probes From LeCroy
Optical Probes
OE425
Short wavelength O/E Converter (500-870 nm)
OE455
Long wavelength O/E Converter (950-1630 nm)
OE525
Short wavelength O/E Converter (500-870 nm)
OE555
Long wavelength O/E converter
Probe Parts and Kits
LPA-SMA-KIT-A
Kit of Pro-Link to SMA Adapter, new style
LPA-SMA-A
Pro-Link to SMA Adapter, new style
LPA-K-KIT-A
Kit of ProLink to K/2.92 mm Adapters
LPA-K-A
ProLink to K/2.92 mm Adapter
DXX05-SI
Replacement Dxx05-SI 13-25 GHz Solder-In Lead with Qty. 10 Spare Resistors. For warranted accuracy, amplifier must be returned to factory for calibration with this lead.
DXX05-PT
Replacement Dxx05-PT Positioner Tip
Dxx0-Cable-HiTemp
Replacement 30" matched cable set for use with HiTemp Solder tip leadset
Dx20-SP
Replacement Square Pin lead set for D320/D620
Dx20-SI
Replacement Solder tip lead set for D320/D620
Dx20-SI-HiTEMP
Replacement Solder tip leadset for use with D620/D320 and temperature extension cables
Dx20-QC
Replacement Quick Connect lead set for D320/D620
Dx20-PT
Replacement Dx20-PT Tip with Qty. 4 Pogo Pin Tips and Qty. 2 Sockets
Dx20-HiTEMP
WaveLink Temperature extension cables for Dx20. Includes 1 set of matched 30" high temp cables, 1 solder tip leadset.
Dx10-SP
Replacement Square Pin lead set for D310/D610
Dx10-SI
Replacement Solder tip lead set for D310/D610
Dx10-SI-HiTEMP
Replacement Solder tip leadset for use with D610/D310 and temperature extension cables
Dx10-PT
Replacement Dx10-PT Tip with Qty. 4 Pogo Pin Tips and Qty. 2 Sockets
Dx10-HiTEMP
WaveLink Temperature extension cables for Dx10. Includes 1 set of matched 30" high temp cables, 1 solder tip leadset.
D13000SI
Replacement Solder-In Interconnect Lead
D11000SI
Replacement solder-in interconnect lead
Transmission Line Probes
PP066
7.5 GHz Low Capacitance ÷10/÷20 probe

联系电话

0731-84284278

在线留言

关注我们

TOP

您好,欢迎访问艾克赛普

想要进一步了解我们的产品和方案?

我们7*24小时为您服务!

电话咨询:0731-84284278

稍后联系

提交您的需求,我们将尽快与您联系

完善您的信息,艾克赛普专业团队为您提供服务!

请选择您要填写的表单类型 *

获取产品报价

获取方案详情

申请技术服务

公司名称 *

姓名 *

手机号 *

邮箱

需求描述 *

验证码 *
