Agilent 8990B 峰值功率分析仪

信息类型: 测试: 商品原价: 优惠价格: 品牌: 单位: 上架日期:11-08-05 09:06 人气:
购物车:查看购物车 购买:
商品介绍

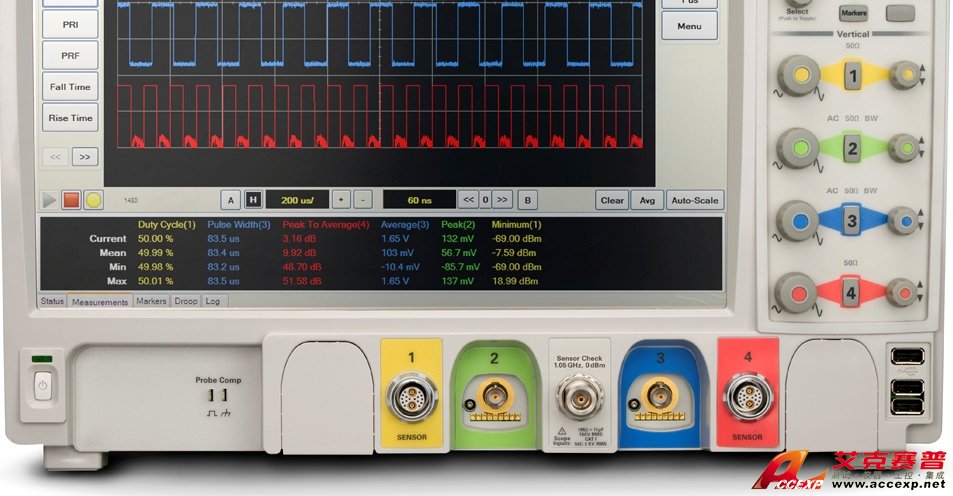

    Agilent 8990B 峰值功率分析仪采用简单易用和高性能的设计,并配备了15英寸 XGA 彩色触摸屏,Agilent 8990B 峰值功率分析仪可同时显示四个通道结果,提供更多的图像细节。Agilent 8990B 峰值功率分析仪提供高达 100 MSa/s 的采样率,研发工程师由此可以获得所需的高分辨率来探测信号迹线中的异常情况,从而对设计进行改进。
    Agilent 8990B 峰值功率分析仪提供了15种预定义的脉冲参数测量,包括上升时间、脉冲倾斜、脉宽和时延等。用户只需在触摸屏上进行两步简单操作,便可让测量自动完成。这些参数可用于功率放大器、TR 模块、应答机、雷达测试仪和卫星净荷以及其他测试设备的设计、测试和验证,使工程师不必再进行复杂的脉冲测量。

    Agilent 8990B 峰值功率分析仪主要特性与技术指标
Frequency range of 50 MHz to 40 GHz (sensor dependant)
Dynamic range of -35 to +20 dBm
Fast System Rise/ Fall time of 5nsec
100 MSa/ sec continuous sampling with >1500 readings/ sec
4 channels (two RF and two video) and compatible with U2000 Series power sensors connected using the USB hosts
Provide 15 Pulse Characterization Measurement with automated pulse delay measurement between channels
20X zooming capability with dual Screen Zoom Window
Internal Zeroing and Calibration

    Agilent 8990B 峰值功率分析仪描述
The 8990B is a peak power analyzer that consists of two RF channels (1 and 4) and two video channels (2 and 3). When used with a compatible peak power sensor, the 8990B is able to measure the dynamic or time- dependent aspects of RF and microwave power. A combination of the 8990B and the N1923/4A peak power sensor enables the RF pulse rise/fall time measurement of up to 5 nsecs. The video inputs of the 8990B allow the simultaneous analysis of time- domain control signals.
The 8990B has a frequency range of 50 MHz to 40 GHz and a dynamic power range of –35 dBm to 20 dBm, depending on the peak power sensor used. The 8990B is capable of measuring peak power, minimum power, average power, peak- to- average power, pulse repetition interval, pulse repetition rate, rise time, fall time, pulse off time, pulse top, pulse base, pulse width, duty cycle, and overshoot. The 8990B also provides internal and external trigger functions.
Below are the wideband power sensors design specifically for 8990B to achieve the best performance for peak power measurement.

N1923A (50 MHz to 18 GHz)
N1924A (50 MHz to 40 GHz)
