中茂 Chroma 平面显示器测试解决方案于组立段可先以Shorting-bar讯号来检测面板的各种瑕疵并进行雷射修补，进入模块制程后则根据不同的面板尺寸及背光源特性(CCFL or LED BLU)，再以视频信号源搭配可程序电源供应器，中茂 Chroma 平面显示器测试解决方案利用PC平台的人性化的操作接口完成电压、电流、功率的测试，并藉由软硬件相互应用分析影像之亮点、坏点、颜色、分辨率等，结合自动化输送带的产线设计，以系统控管的方式提供数据分析之整合性网管功能。长沙艾克赛普仪器设备有限公司是中茂 Chroma 在华中地区授权代理商，可提供样机和相关工程师上门演示沟通，以下是长沙艾克赛普仪器设备有限公司为您介绍中茂 Chroma 平面显示器测试解决方案的系列产品,如果您有任何问题或者需要相关资料，请随时联系：0731-84284278转801，邮箱：shawn.xiao@hncsw.net。
OLED测试系统
-

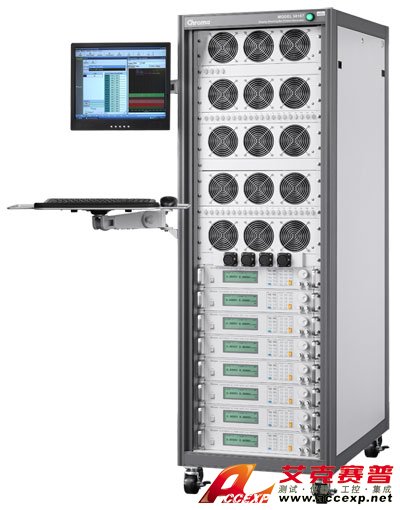

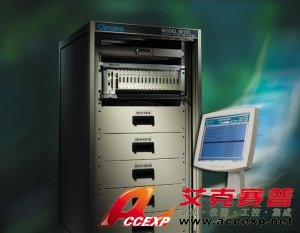

Model 58131 OLED 寿命周期测试系统
-
Test for electrical characteristic and brightness
-
Thermoelectric cooler controller function (optional)
-
Advance OLED life time prediction algorithm
-
Model 58166 OLED 面板 Shorting Bar 图形产生器
-
Large size OLED pattern generator
-
Flexible waveform editor
-
Auto discharge function
-
Model 58167 LTPS 面板 Shorting Bar 图形产生器
-
Pattern generator for E-paper or LTPS panels.
-
36 channels output
-
Auto discharge function
液晶模组自动测试系统
-

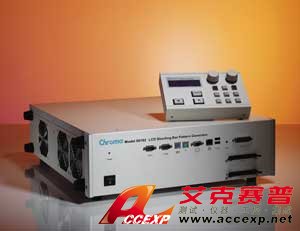

Model 58162 LCD Shorting Bar 图形产生器
-
Flexible waveform editor
-
PC-based platform
-
High slew rate
-
Integration with TEC or AOI function (optional)
-

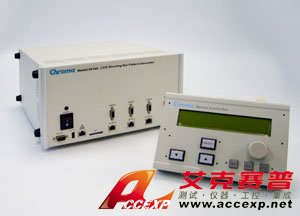

Model 58168 LCD Shorting Bar 图形产生器
-
Flexible waveform editor
-
High slew rate
-
Available for 4 operators in the same time.
-
Low cost
-

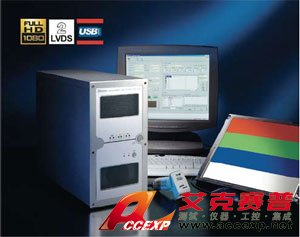

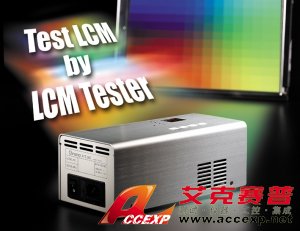

Model 27011 LCM测试器
-
Cost-effective LVDS Tester.
-
LVDS 2ch up to 162MHz
-
TTL (Optional) signals output
-
12V / 5V output for Vbl
-
12V / 5V / 3.3V output for Vdd
-

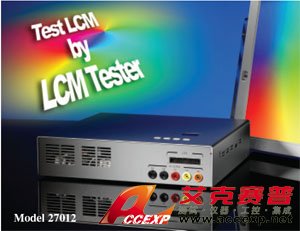

Model 27012 LCM 测试器
-
Portable LVDS Tester.
-
LVDS 2ch up to 162MHz
-
TTL (Optional) signals output
-
24V / 12V / 5V output for Vbl
-
12V / 5V / 3.3V output for Vdd
-

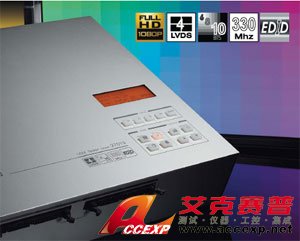

Model 27013 LCM 测试器
-
Portable LVDS Tester.
-
LVDS 4ch up to 330MHz
-
Vdd output 3.3~13V / 3.5A programmable
-
Vbl by pass outside DC source
-
EDID Read / Write / Compare
-

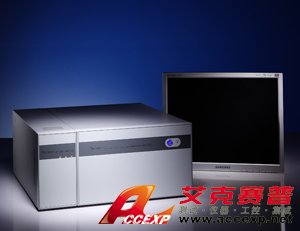

Model 29133/29135 液晶模组自动测试系统
-
LCM Automatic Test System (ATS).
-
LVDS 2ch up to 270MHz (29135)
-
3 channel internal DC Power source
-
Power protection OVP/OCP/UVP/UCP
-
In-line process control and data collection
-

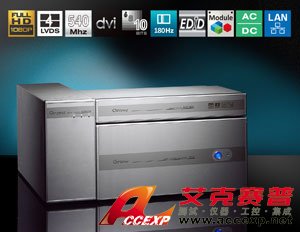

Model 2916 液晶模块自动测试系统
-
LCM Automatic Test System (ATS).
-
LVDS 4ch up to 540MHz
-
8 channel DC Power source module
-
Power protection OVP/OCP/UVP/UCP
-
In-line process control and data collection
-
Model 2917 液晶模块自动测试系统
-
LCM Automatic Test System (ATS).
-
LVDS 8ch up to 1.08GHz
-
8 channel DC Power source module
-
Power protection OVP/OCP/UVP/UCP
-
In-line process control and data collection
-

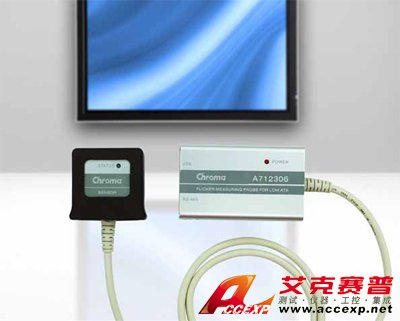

Model A712306 液晶模组自动测试系统用闪烁量测探头
-
Able to integrate with LCM ATS for LCM auto flicker adjustment
-
Capable of integrating Chroma 29XX Series LCM Auto Test System
-
Support FMA and FLVL flicker measurement mode
液晶模组老化测试系统
-

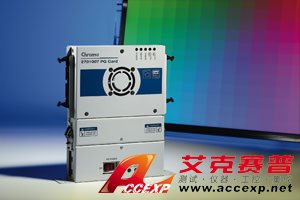

Model 27010 series 液晶模块信号产生卡
-
Pattern Generator Card for LCM Burn-in system.
-
LVDS 4ch up to 330MHz
-
Power OCP protection
-
Timing / Pattern Auto / Manual Run
-
Cost-effective
-

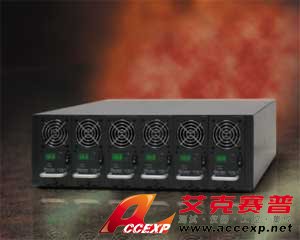

Model 67300 series 直流电源供应器(LCM老化测试应用)
-
Modular DC Power Supply for LCM Burn-in system.
-
High Power Density (464mW / cm3 )
-
Remote Sense, 1V Line Loss Compensation
-
Remote RS-485 Interface Control
-
Cost-effective
电气安规分析仪
-

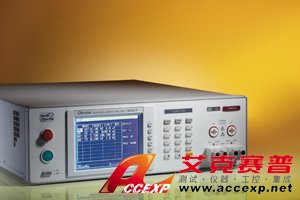

Model 19032/19032-P 电气安规综合测试仪
-
全功能电气安规分析仪
-
五合一安规综合测试(交流耐压/直流耐压/绝缘电阻/接地电阻/动态泄漏电流)
-
500VA 输出
-
接地连接(40A)
-
符合各项法规的人体模拟电路
-
Open / Short Check侦测(OSC)
-
GFI人体保护电路
-
动态泄漏电流扫描装置
自动测试系统
-

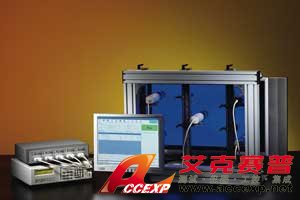

Model 7660 显示器多探头自动测试系统
-
采用非接触式量测设计，配备符合 CIE 1931及CIE1976 UCS配色函数之感应器，可精确量测显示器面板之辉度与色度均匀度。
