PSV-500-B扫描式激光测振仪

PSV-500-B扫描式激光测振仪价格优惠
产品名称与编号:PSV-500-B扫描式激光测振仪http://www.hncsw.net/product/Vibration-Test/PSV-500-B-.html。
所属类别与网址:振动测试仪|http://www.hncsw.net/product/Vibration-Test/
产品电话与品牌:PSV-500-B扫描式激光测振仪销售电话:0731-842842780

产品详细说明:

PSV-500是全场扫描式激光测振仪的第五代产品,是全球第一台全数字式扫描激光测振仪。可在距目标0.125m~100m距离上测试,一次扫描完成几个厘米器件到数十米结构的模态测量,测量点数可多达数十万点。用户无需建模,可在实物视频图像上快速直接完成测量网格布置,并以每秒30点以上速度扫描,具有极高的工作效率!

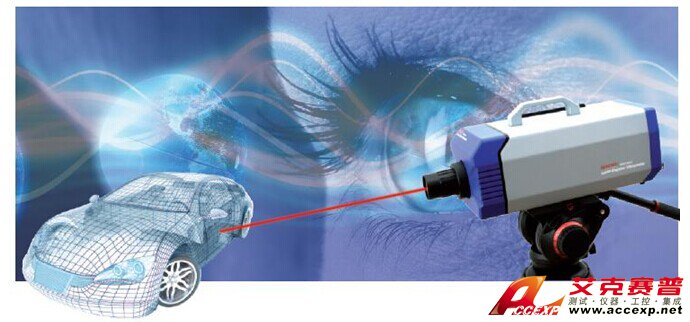

PSV-500-B 图片
序列 数量 描述
  1 PSV-500-B  Scanning Vibrometer Acoustic
扫描式激光测振仪
主要声频范围模态测量
Scanning Laser Vibrometer for the non-contact and full-field measurement of deflection shapes in acoustic and general purpose applications.
Comprising the following components:
由以下组成
1 1 MON-TFTM TFT Monitor    24吋液晶显示器
Premium-brand high-resolution TFT Monitor. High viewing angle for a convenient working environment. 61 cm (24 inch), 16:10 aspect ratio.
2 1 PSV-F-500 Front-End B standard    B型前端
采用DV-01解码器,100mm/s 到10m/s 7个档位
频率范围:DC-50KHz, 24bit
Electronics for decoding the high frequency signals from the interferometer. Connects to the scanning head and to the reference signals, SYNC, trigger and gate for measurement control.
Comprises a digital wide bandwidth decoder DV-01 featuring 7 ranges.
- Velocity range 100 mm/s - 10 m/s
- Bandwidth: 50 kHz (range dependent), 24 bit
- Max. velocity: 10m/s (range dependent)
Integrated data acquisition and optional signal generator.
Output: fully digital transmission of data via a VibroLink ethernet connection to the Data Management System (DMS).
Size : 19", 2HE
3 1 Chassis Type of Electronic Unit
Rackmount for Integration in 19" Racks    19寸标准机箱
The Chassis is equipped with 2 handles on the front panel as well as additional flanges for mounting in 19" racks
4 1 PSV-C-510 Umbilical Cable10m    主电缆
5 1 PSV-I-500 Vibrometer Scan Heads    主激光扫描头
comprises a highly sensitive miniaturized interferometer with integrated transmitting and receiving optics, the laser source(Helium-Neon-Laser 633nm, < 1mW output  power, laser class 2), x-y scanning mirrors with digitally controlled galvo drives
- scan angle HxV 50° x 40°
- HD video camera featuring 16x optical zoom; field of view 55° x 32°
- closest measurement distance: 125 mm
- integrated connector for pan/tilt head control  and for a compensation sensor
6 1 Internal Scanner Control        内部扫描控制
7 1 No. of Reference Channels    1个参考通道
Data acquisition for reference sensors (e.g. accelerometers, force transducers). Featuring IEPE (ICP) power supply.
- Connector: BNC at front panel
- Bandwidth 50kHz, 24 bit,
- Transmission via VibroLink to DMS
8 1 PSV-W-500 Data Management System    数据管理系统
19" industrial PC featuring Quad-Core CPU, 8 GByte RAM, 1 TB HDD, DVD recorder, Gbit-LAN, graphics board with dual DVI output, wireless optical mouse and keyboard.
含高性能工控机一台,8G内存,1T硬盘,DVD(可写),网卡
9 1 Windows 7 Ultimate 64bit OEM        Windows 7操作系统
10 1 License for  B Version    软件使用许可
 Data acquisition in time (scanning optional) and frequency domain, digital filters, signal averaging and real-time integration & differentiation in time and frequency domain.
Advanced Peak Hold function with signal enhancement for drop-out reduction. Zoom into Area Display function provides an additional digital zoom for easy scan point definition with highest precision. The Zoom into Area Display function is available for the Acquisition Mode as well as in Presentation Mode.
Extensive data analysis software package, provides complex spectral analysis according to well established industrial standards with H1, H2, FRF, phase and coherence functions displayed in Acquisition Mode (for single points) and Presentation Mode (for all scanned points).
The results of a scanning measurement are shown as pseudo-colors, isolines and wire mesh displays. 3D animation with overlaid video image and saving as AVI file of operating deflection shapes. A convenient file browser allows easy access to complete projects, measurement files and macros. Together with the signal processor PSV-S-SigPro post processing of data can be performed by drag and drop.
Scanning software allows up to 256 x 256 scan points per object; 6400 FFT lines for each channel. The entire spectrum (magnitude and phase) is stored at every point during scan.
Including an advanced point definition for arbitrary definition of measurement points and individual object properties: grid type (polar, hexagonal, rectangular), grid density and rotation, object rotation; poly-line objects; advanced edit mode for polygon
Includes all necessary drivers for computer hardware.
包括扫描控制,数据获取与分析功能
扫描控制包括:
视频图像设置,变焦及聚焦
激光手动及自动聚焦
激光扫描
解码器设置
数据获取包括:
数据时域(选配件)或频域获取记录,数字滤波,信号平均,实时积分或微分
信号增强模式,用于减小光学丢失噪声
数据分析功能包括:
在目标图像上显示任意频率下的振型
任意点的频谱
传递函数,实部,虚部,相位等
可用二维,三维或等高线显示
结果可保存为图片或动画片
可输出ASCII或UFF格式
11 1 PSV-S-FFT 6400 Resolution FFT    支持6400线FFT
6400 FFT lines for all acquisition channels
12 1 Waveform Generator    信号波形发生器
13 1 Noise Identification    噪声监听
PSV-S-Audio AudioScan
14 1 PSV-S-ExpUFF Export filter    通用数据格式输出
Transforms scanning data into Universal File Format (UFF) data file format. Supports ME Scope, LMS, SDRC (MTS), Star Modal and other modal analysis packages also UNIX based packages.
15 1 PSV-S-VBEng Basic Engine    VB工具
SAX Basic Engine and Polytec File Access
Includes SAX Basic Engine: Visual Basic for Applications (VBA)® compatible programming interface and PolyFileAccess (PFA).
PFA enables retrieval of Polytec data via external applications supporting Microsoft’s Component Object Model (COM),e.g. Visual Basic, Matlab, LMS Test.Lab, VSI Rotate. Supports *.pvd; *.svd file formats including User Defined Data Sets (UDDS).
For MS Windows based applications only!
16 1 PSV-S-SM-B Software Maintenance    一年软件免费维护与升级
17 1 A-VIB-HEAD Headphones    耳机
High-end closed headphones (with internal limiter 99dB for ear protection). 3.5 and 6.3 mm TSR jack.
18 1 VIB-A-T02 Tripod    三脚架
19 1 PSV-A-535 Storage Case for Scanning Head    光学头保存箱
二、选配件(升级)
20 1 Option PSF-F-500 Front-End B Enhanced    前端升级为增强型
解码器升级为DV-02,10个档位 10mm/s-10m/s
Electronics for decoding the high frequency signals from the interferometer. Connects to the scanning head and to the reference signals, SYNC, trigger and gate for measurement control.
Comprises a digital wide bandwidth decoder DV-02 featuring 10 ranges.
- Velocity range 10 mm/s - 10 m/s
- Bandwidth: 50 kHz, 24 bit
- Max. velocity: 10m/s (range dependent)
Integrated data acquisition and optional signal generator.
Output: fully digital transmission of data via a VibroLink ethernet connection to the Data Management System (DMS).
Size : 19", 2HE
21 1 PSV-F-500 Front-End B High Resolution    前端升级为高分辨增强型
解码器升级为DV-03,13个档位 1mm/s-10m/s
Electronics for decoding the high frequency signals from the interferometer. Connects to the scanning head and to the reference signals, SYNC, trigger and gate for measurement control.
Comprises a digital wide bandwidth decoder DV-03 featuring 13 ranges.
- Velocity range 1 mm/s - 10 m/s
- Bandwidth: 50 kHz (range dependent), 24 bit
- Max. velocity: 10m/s (range dependent)
Integrated data acquisition and optional signal generator.
Output: fully digital transmission of data via a VibroLink ethernet connection to the Data Management System (DMS).
Size : 19", 2HE
22   PSV-S-APS APS Professional    专业布点
Software module for generating complex measurement grids. Features various basic geometries like polygons, hexagons, circles and arbitrary points. Further functions: grouping, point density, coarsening, refining, manipulation of edge points, etc.  Supporting the focus memory function of the scanning sensor head.
具有任意改变某区域扫描密度,任意增加扫描点的功能,激光自动聚焦
23 1 PSV-S-HRScn High Resolution Scan    高密度扫描
Software extension to allow a high-resolution 512 x 512 (or higher) point density across the viewing area (full screen).
支持全屏上的512X512点扫描
24 1 PSV-S-FaScn Fast Scan    快速定频扫描
Fast scan routine for single frequency vibration measurements
25 1 PSV-S-FFT1128 High Resolution FFT    支持12800线FFT
Extension of the FFT to 12800 FFT lines for all acquisition channels
26 1 PSV-S-Gateln Gate Input Software Control    门输入功能
Enables external control for start and stop of a measurement by a TTL signal, e.g. from the Acoustic Gate Unit PSV-A-430.
27 1 PSV-S-SigPro Post-processing of data    数据后处理工具
The Polytec Signal Processor is the user interface to the PolyMath library included in the PSV software. Easy-to-use spreadsheet for post processing of scan data. Processed area data sets can be re-exported into the original file for animation. Stored data (*.psd or *.svd) and live data can be used for processing (from version 9.0 onwards).
28 1 No. of Signal Generator Channels    信号发生器通道一个
Channels Signal Generator: 1
Integrated arbitraty signal generator
- Connector: BNC at front panel
选配件(B,H,M)
29 1 PSV-S-TDD Time domain data    时域模块
扫描过程中各点振动用时域信号记录
30 1  PSV-S-FFTEXT Extension to min. 204,800 FFT lines        FFT线数升级
Extended number of FFT lines. Requires PSV-S-FFT128 software option installed.
Possible settings are:
25,600 lines
51,200 lines
102,400 lines
204,800 lines
409,600 lines
819,200 lines
The available number of FFT lines depends on the active channels and the A/D settings of the acquisition system. With 8-channels active: max. 51,200 lines
31 1 PSV-G-500 Distance Sensor    轮廓扫描仪
for coordinate measurements via the scanning mirrors.
Reproducibility typically +/- 1.5 mm
High dynamic range to cope with surface reflectivity changes without additional filtering or surface preparation. PSV-G-500 is integrated into the PSV-I-500 scanning head.
32 1 PSV-A-525 Protective Window    保护镜
33 1 PSV-A-HNEBF Helium Neon Block Filter    滤光片
Filter for the scanning head camera for improving laser beam visibility on highly reflective surfaces and for  measurements of small components.
34 1 PSV-S-TRIA VideoTriangulation 1D    激光耦合优化
Software option for PSVsoft (version 8.8 or higher) on PSV-1D systems. VideoTriangulation is based on image processing allowing for a automatic alignment of the laser spot with the grid points show in the video image.


PSV-500-B 图片


  • 购买产品免运费
  • 支持淘宝支付宝与财付通
